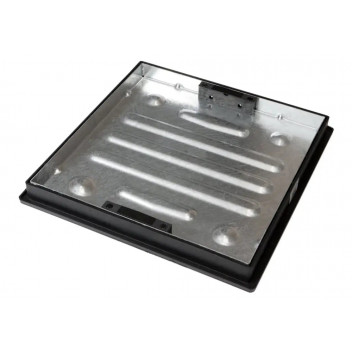

CD 450SR/46SL Manhole Cover

The CD 450SR/46SL is a recessed, galvanised steel manhole cover with a polypropylene frame, suitable for internal drainage and pedestrian areas. The frame is manufactured from fully recycled material, providing both durability and environmental benefits.

The cover is fitted with a rubber sealing gasket to prevent unwanted odours from escaping, making it ideal for indoor applications. It also includes integral lifting keys for ease of installation and maintenance.

The cover features external dimensions of 580mm x 580mm x 54mm, with a clear opening of 450mm diameter.

Features & Benefits:

• Recessed cover and frame design
• Polypropylene frame manufactured from fully recycled material
• Moulded grouting flange for secure installation
• Fully interchangeable cover
• Factory-fitted rubber sealing gasket to prevent unwanted odours
• Integral lifting keys included

Specifications:

• Applications: Internal drainage, Pedestrian Areas
• Locking: Locking screws and sealing gasket
• Loading: 5 Tonne Gross Plated Weight
• Cover: Recessed (Concrete Infill)
• Lifting Key: Integral Lifting Keys (included)
• Material: Galvanised Steel Cover & Polypropylene Frame
• External Dimensions: 580 (L) x 580 (W) x 54 (D)
• Clear Opening: 450 Diameter
