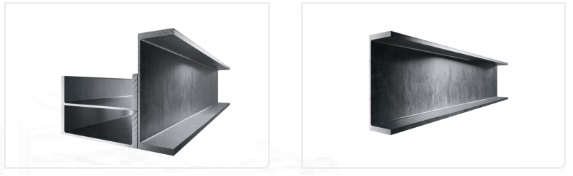

RSJ Steel Beams

PARALLER FLANGE CHANNEL

RECTANGULAR HOLLOW SECTION
SQUARE HOLLOW SECTION
UNIVERSAL STEEL BEAM
ROLLED STEEL ANGLE
PARALLER FLANGE CHANNEL
UNIVERSAL COLUMN
CIRCULAR HOLLOW SECTION


We supply a range of RSJ Steel Beams and these will be on a special order delivery and pricing will be on application.
Please select from the product list below with a Quantity required and submit your enquiry to us.

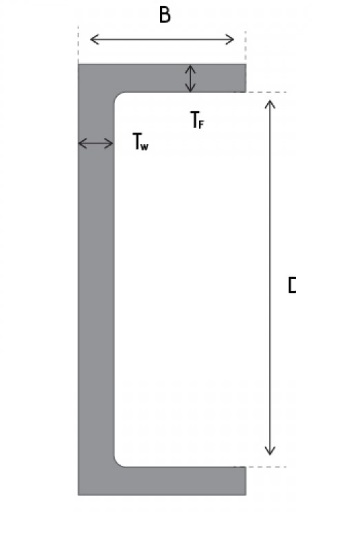

Dimensions and types

Designation Size (mm)
Mass Per Metre (kg/m)
Depth (D) (mm)
Width (B) (mm)
Web Thickness (t) (mm)
Flange Thickness (T) (mm)
100 x 50 x 10
10.2
100
50
5.0
8.5
125 x 65 x 15
14.8
125
65
5.5
9.5
150 x 75 x 18
17.9
150
75
5.5
10.0
150 x 90 x 24
23.9
150
90
6.5
12.0
180 x 75 x 20
20.3
180
75
6.0
10.5
180 x 90 x 26
26.1
180
90
6.5
12.5
200 x 75 x 23
23.4
200
75
6.0
12.5
200 x 90 x 30
29.7
200
90
7.0
14.0
230 x 75 x 26
25.7
230
75
6.5
12.5
230 x 90 x 32
32.2
230
90
7.5
14.0
260 x 75 x 28
27.6
260
75
7.0
12.0
260 x 90 x 35
34.8
260
90
8.0
14.0
300 x 90 x 41
41.4
300
90
9.0
15.5
300 x 100 x 46
45.5
300
100
9.0
16.5
380 x 100 x 54
54.0
380
100
9.5
17.5
430 x 100 x 64
64.4
430
100
11.0
19.0
